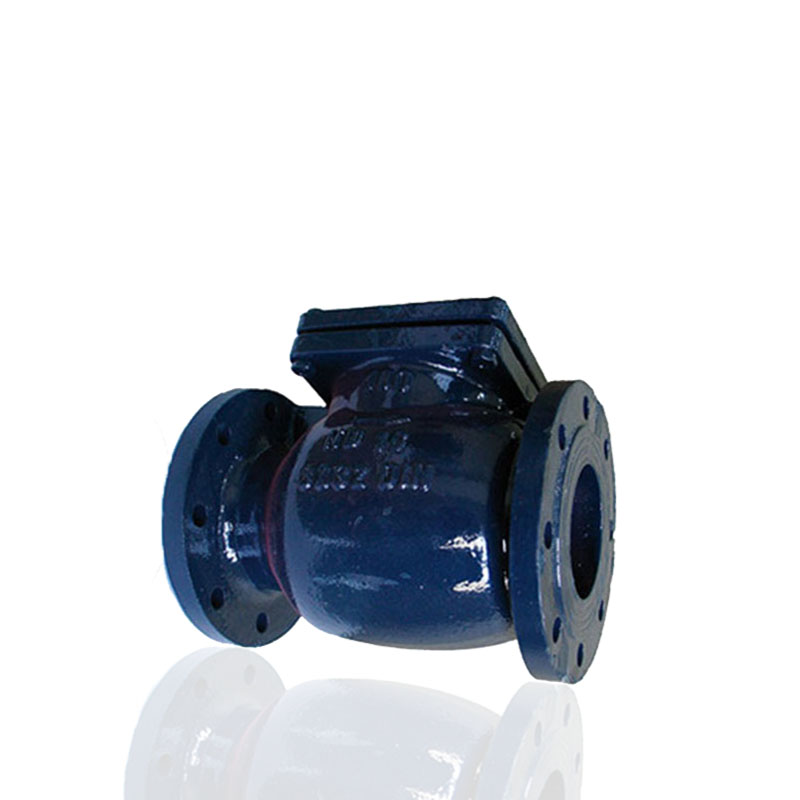

PN16 Non-Return Check Valve / Swing Type
| Body- Cover | GG-25 Cast Iron (EN GJL 250) |
| Disc | GG-25 Cast Iron (EN GJL 250) |
| Seats | Brass - Bronze |
| Connection | Flanged |
| Max. Working Temp. | 120 ºC |
| Max. Working Pressure | 16 Bar |
| Applications Area | Hot and Cold Water Systems |
| All non-Asidic Fluids |
| CODE | SIZE |
| DN (mm) | |
| 1702 | DN50 |
| 1703 | DN65 |
| 1704 | DN80 |
| 1705 | DN100 |
| 1706 | DN125 |
| 1707 | DN150 |
| 1708 | DN200 |
