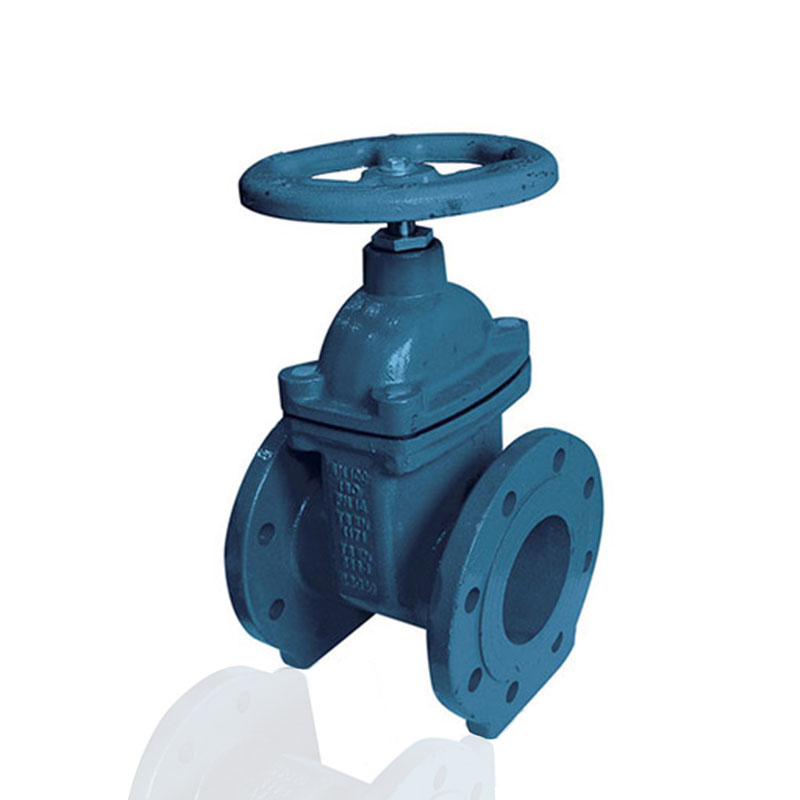

PN10-16 Gate Valve / Metal_Seated
| Body- Cover | GG-25 Cast Iron ( EN GJL 250 ) |
| Disc | GG-25 Cast Iron (EN GJL 250) |
| Handwheel | GG-25 Cast Iron (EN GJL 250) |
| Gasket | EPDM / NBR |
| Connection | Flanged |
| Max. Working Temp. | 70 ºC |
| Max. Working Pressure | 10- 16 Bar |
| Applications Area | Hot and Cold Water Systems |
| Non-acidic and non-flammable liquid fluids |
| CODE | SIZE |
| DN (mm) | |
| 1751 | DN50 |
| 1752 | DN65 |
| 1753 | DN80 |
| 1754 | DN100 |
| 1755 | DN125 |
| 1756 | DN150 |
| 1757 | DN200 |
| 1758 | DN250 |
| 1759 | DN300 |
| 1760 | DN350 |
| 1761 | DN400 |
